The Looking Glass

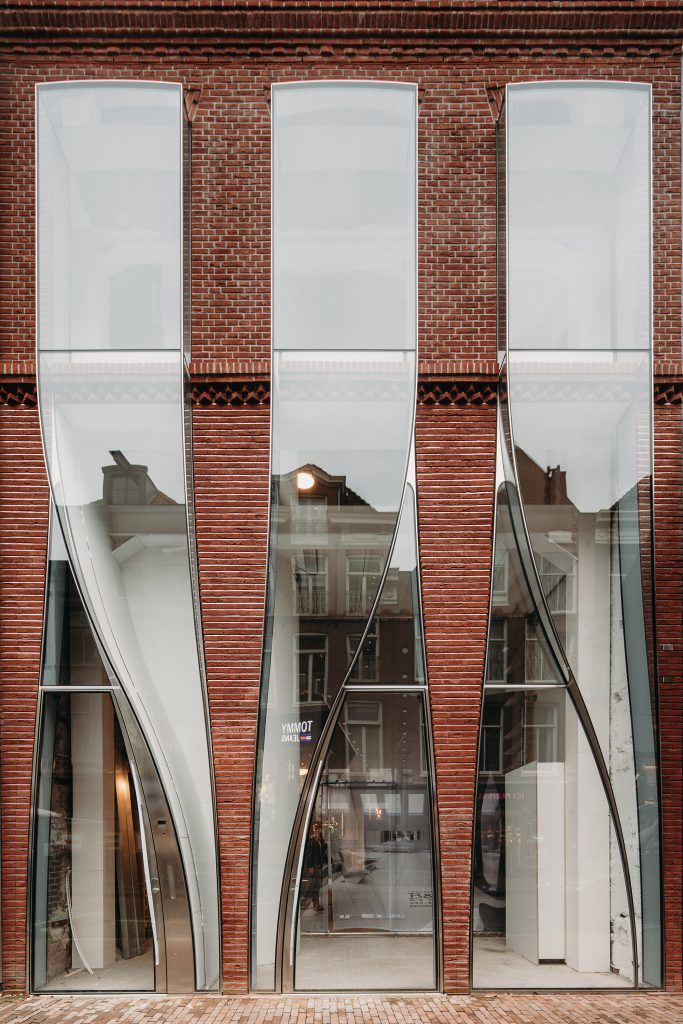

UNStudio has renovated the facade of P.C. Hooftstraat 138 in Amsterdam in a celebration of textiles, both in form and function; three curved glass panels flow down from the upper floors in a design that mimics billowing transparent cloth.
P.C. Hooftstraat is one of the most elegant shopping streets in Europe, home to only leading international and Dutch designers, flagship stores and boutiques.
Situated in the heart of the Museum Quarter, between Museumplein and the Vondelpark, shops including ‘crystal house’, the Hermès boutique, on the P.C. Hooftstraat is a display of Dutch design, creative heritage, and elegance.

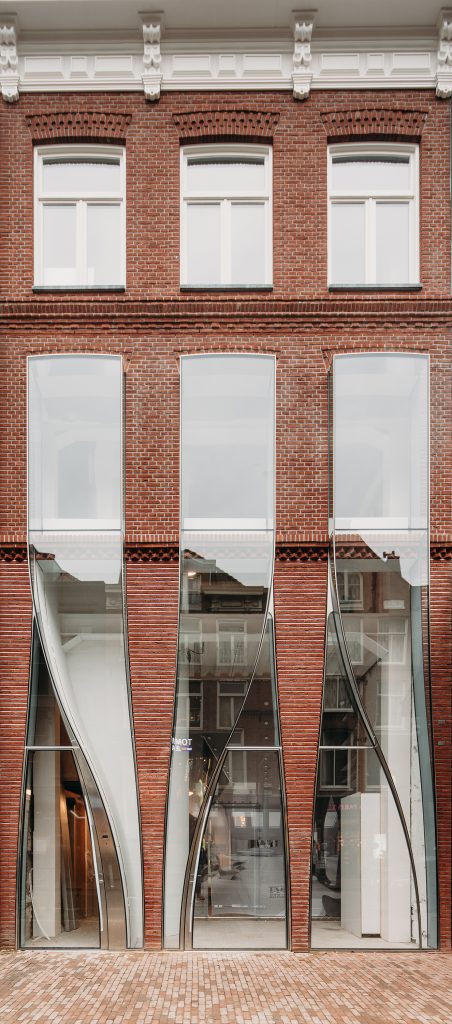

In a fluid gesture, fashion and architecture come together to represent and celebrate the craftsmanship and geometry of high-end, tailored clothing, creating harmony between aesthetics and function. All this, while keeping true to the original design of the three-windowed vertical division of an Amsterdam townhouse, where on the upper floors above the retail section, a bespoke apartment design will carry high-and architecture through the entire building.

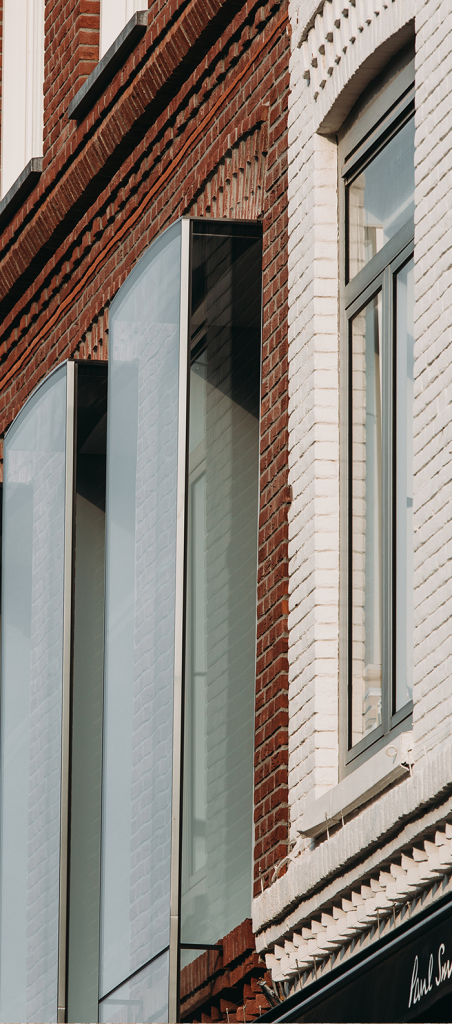

Two main features connect the ground and the first floors: glass boxes surrounded by brickwork. The three structural glass ‘box elements’ are each assembled in the factory and mounted on site. Large laminated annealed low iron glass panels, both curved and straight, are bonded with structural silicone to the adjacent glass panels with stainless steel edge profiles in between, thus forming a glass box. Each glass box is then bonded to a hidden steel frame for protection and shipping purposes, before being installed as a single unit on site.

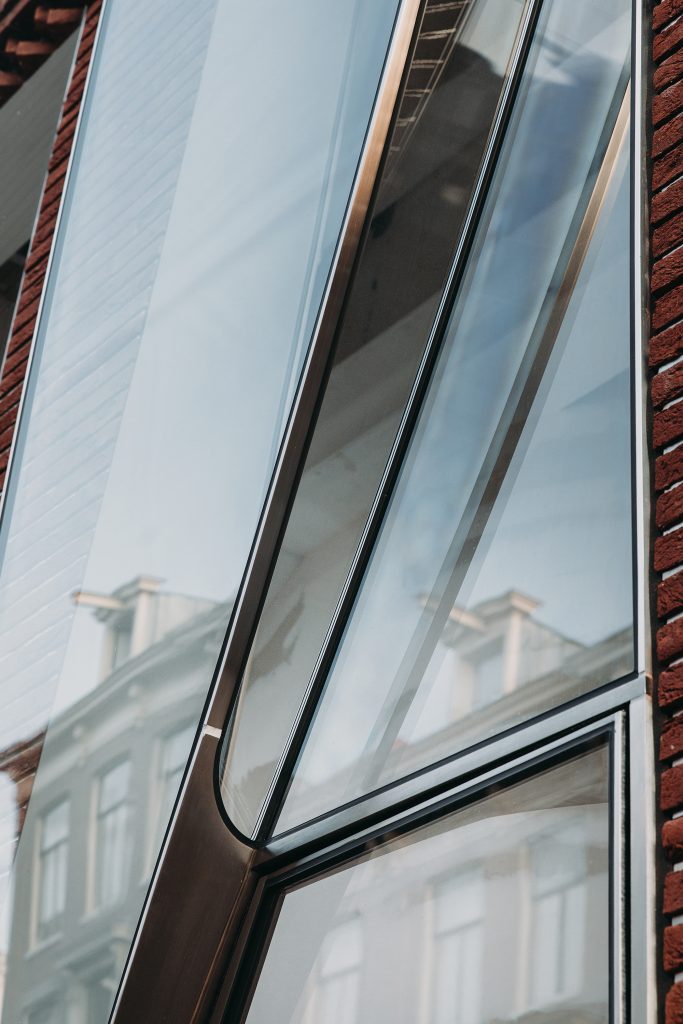

After installation, a rigid insulation layer is added on top of a GRC panel. Brick slips are then glued on to the insulation layer. Between the slips on the ground floor level, a metal strip is introduced to create slight differentiation from the rest of the brickwork and to meet urban requirements. 8mm wide silicon seams between the polished stainless steel edge profiles and the glass panels allow for any tolerances in the curved glass that might occur during the manufacturing process, while the steel profile protects the glass edges from damage and absorbs the transformation in geometries.
Client: Warenar Real Estate – Warenar developed and owns Crystal House, the Hermes Boutique
Location: PC Hooftstraat 138, Amsterdam
Building surface: Retail, ca 340m2, Residential 130m2
Programme: Retail facade, Residential
Facade Engineer: ARUP
Structural engineer: Brouwer en Kok
The executive architect for main construction: Gietermans & Van Dijk Architecten B.V.
Main contractor: Wessels Zeist b.v.
Facade contractor: Octatube Nederland b.v.
