Zaha Hadid Designed Stadium is Now Open

Inaugurated on 16 May 2019 by hosting the Amir Cup Final of the Qatar Stars national football league, Al Janoub Stadium, as it was renamed, was the first new stadium commissioned for the 2022 FIFA World Cup in Qatar.

Al Wakrah Stadium

The Al Wakrah Stadium

Zaha Hadid Architects (ZHA) together with Aecom began designing the stadium along with its new precinct for Doha in March 2013. As one of the venues of the 2022 World Cup, the stadium hosted the group and quarter-final matches of the tournament. The stadium is located in the city of Al Wakrah that is 23km south of Doha and connected to the capital via the Red Line of the new Doha Metro system.

Qatar Opens Al Wakrah Stadium

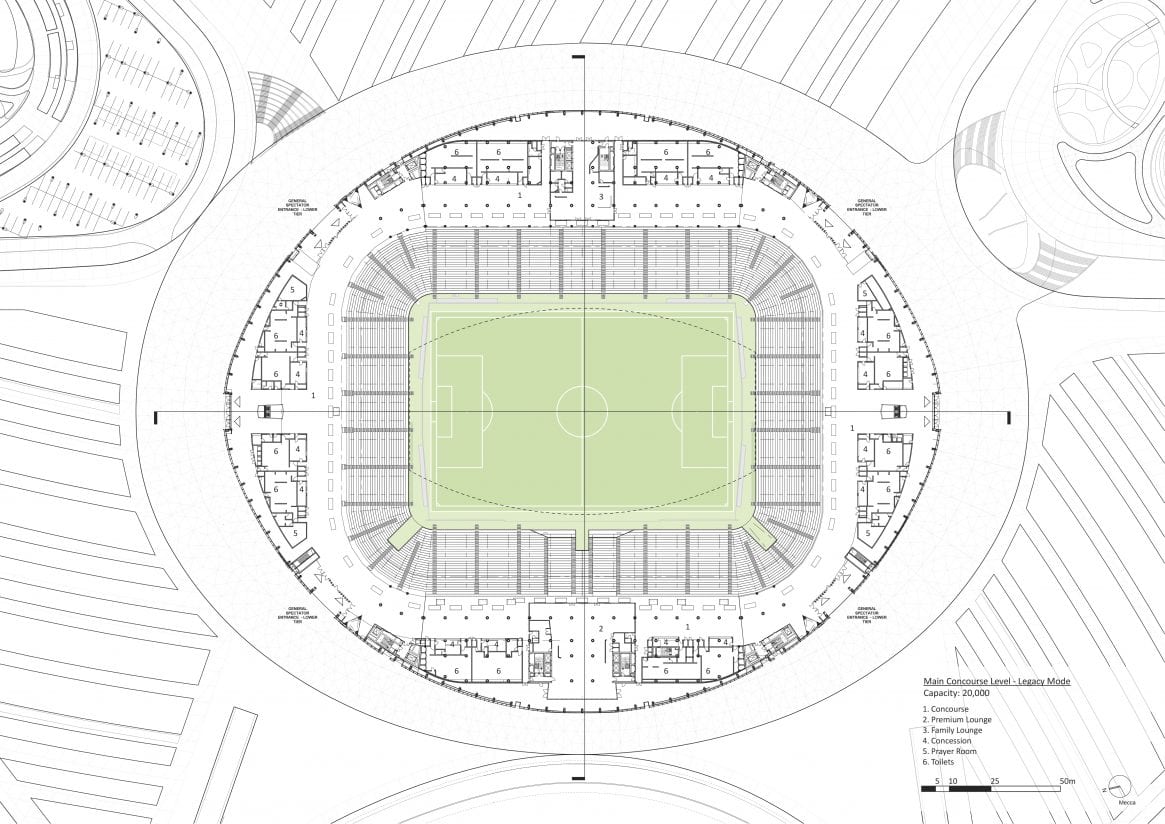

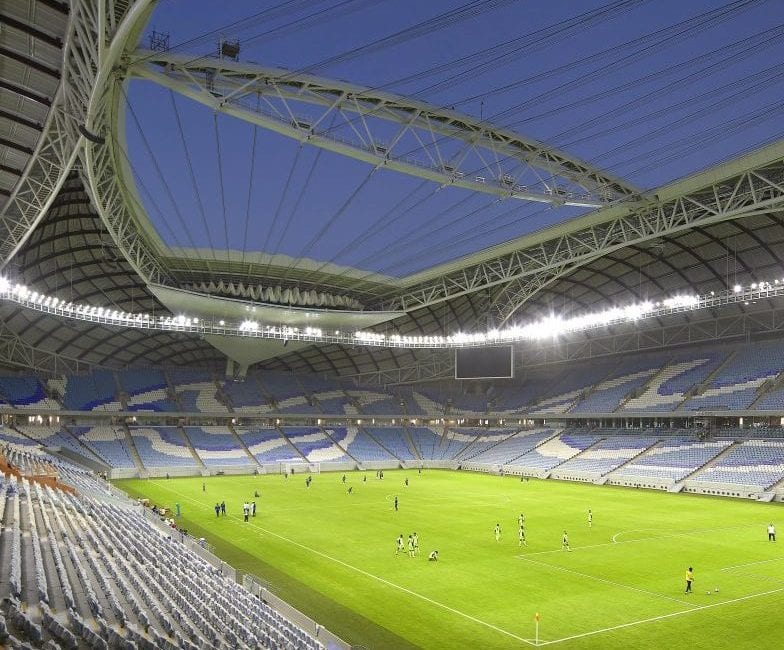

The 40,000-seat football stadium that can be reduced to a 20,000-seat capacity.

The Supreme Committee for Delivery and Legacy’s brief, according to ZHA, was for a 40,000-seat football stadium for the 2022 World Cup which could be reduced to a 20,000-seat capacity in its legacy mode following the tournament. 20,000 seats is the optimum capacity for legacy use as the home ground to Al Wakrah Sport Club professional football team of the Qatar Stars national league. These temporary seats have been designed to be demountable and transportable to a developing country in need of sporting infrastructure for post-tournament usage. Further temporary accommodation such as concessions are required for the additional capacity of FIFA World Cup tournament mode. This has been built as a temporary overlay outside the permanent footprint and enclosure of the stadium in its legacy mode, explains the designers from the ZHA team.





Al Wakrah Stadium

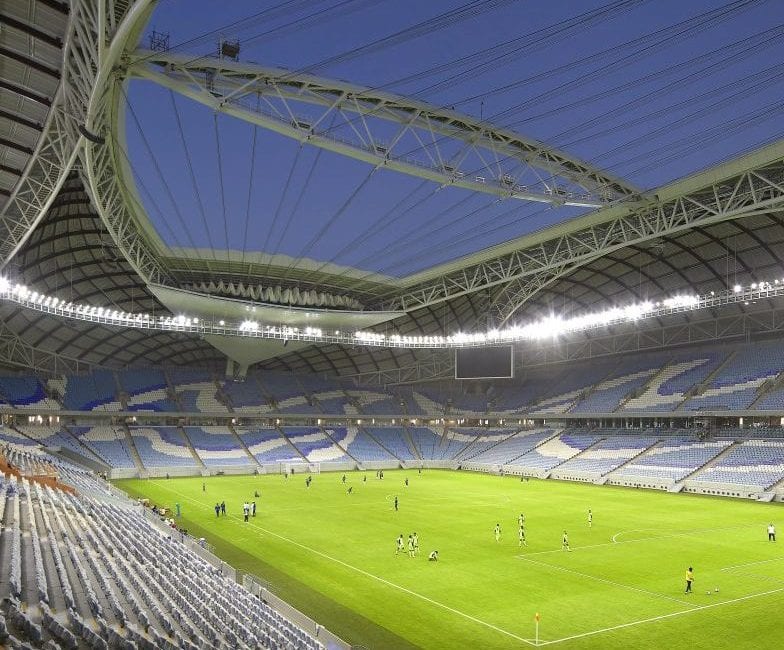

The operable roof has a cladding using PTEE fabric and cables

The stadium has designed by Schlaich Bergermann Partner and a seating bowl cooling system that ensures the stadium can be used during Qatar’s summer months. The operable roof has been designed in sympathy with the cladding using pleated PTFE fabric and cables. When its deployed, the roof operates like a sail to cover the oculus above the field of play and create a sheltered environment for football during the summer. Passive design principles along with computer modelling and wind tunnel tests were used to maximise the effectiveness of the physical enclosure to ensure player and spectator comfort.

2022 FIFA World Cup

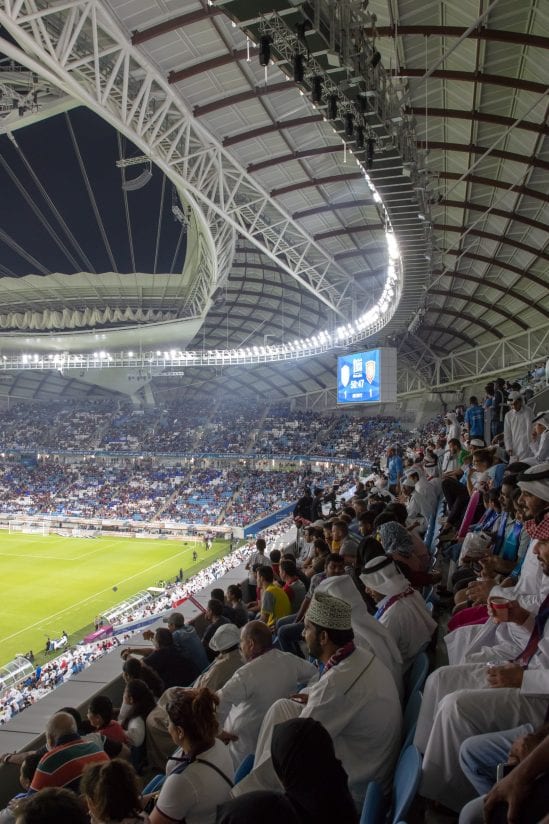

The roof of the stadium in detail

Given the stadium’s context within the coastal city of Al Wakrah, the client asked that its design reflect the maritime traditions and history of the location, in particular, the traditional boat of the region, the dhow. Zaha Hadid Architects responded with a design that incorporates these cultural references in an abstract manner and combined them with practical responses to the climate, context and the functional requirements of a football stadium. The abstraction transforms the literal into something new and appropriate for a football stadium; allowing multiple interpretations of these cultural references both in terms of how they are applied and how they are read.

Zaha Hadid Architects

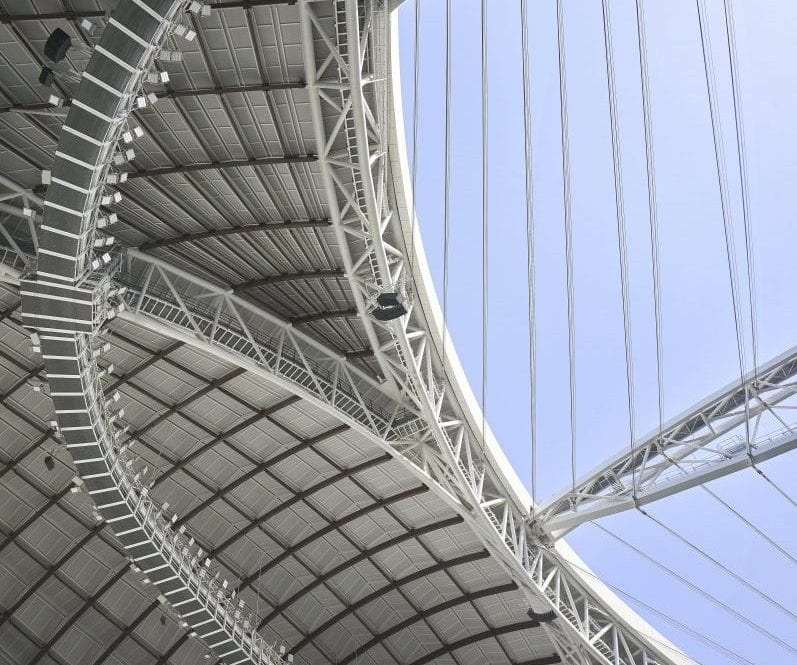

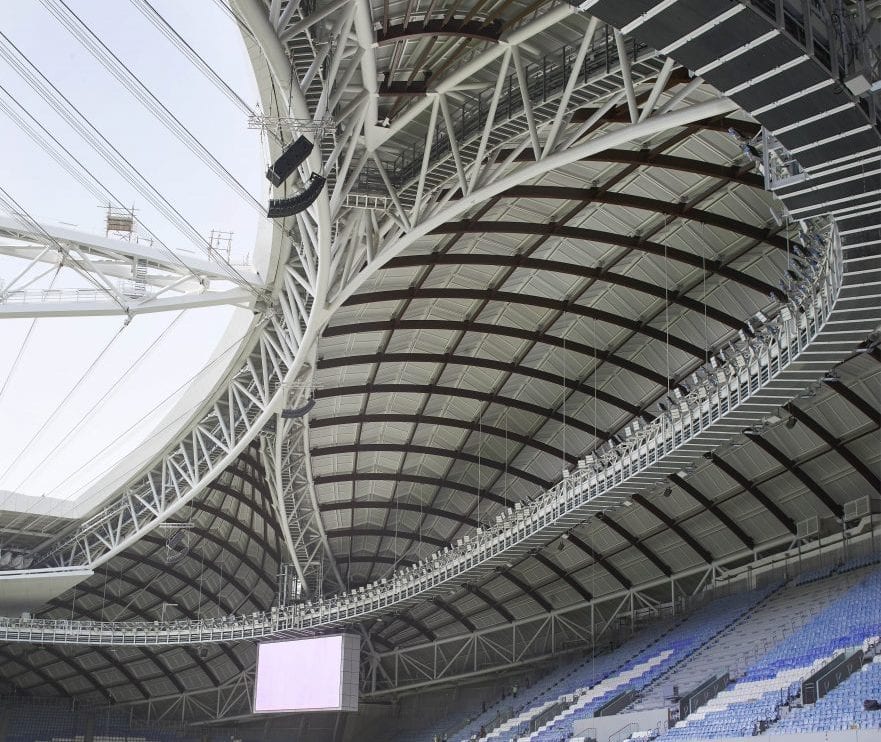

The roof’s beam structure echoes the interiors of a dhow

Designed Like a DHOW

1. The stadium’s roof design is an abstraction of the hulls of dhows turned upside-down and huddled together to provide shade and shelter. This is expressed in the stadium’s envelope geometry, details and selected materiality, including the roof’s beam structure that echoes the interior structure of a dhow’s hull.

FIFA World Cup in Qatar stadium

The facade is tapered in elevation like the dhow’s sails

2. The facades of the stadium are slanted outwards, tapered in elevation and reminiscent of the pleating of a dhow’s sails. The image of the dhow is further emphasized through the large overhang of the stadium’s eaves that incorporates strips of metal cladding reminiscent of the timber structures used in a dhow.

FIFA World Cup in Qatar

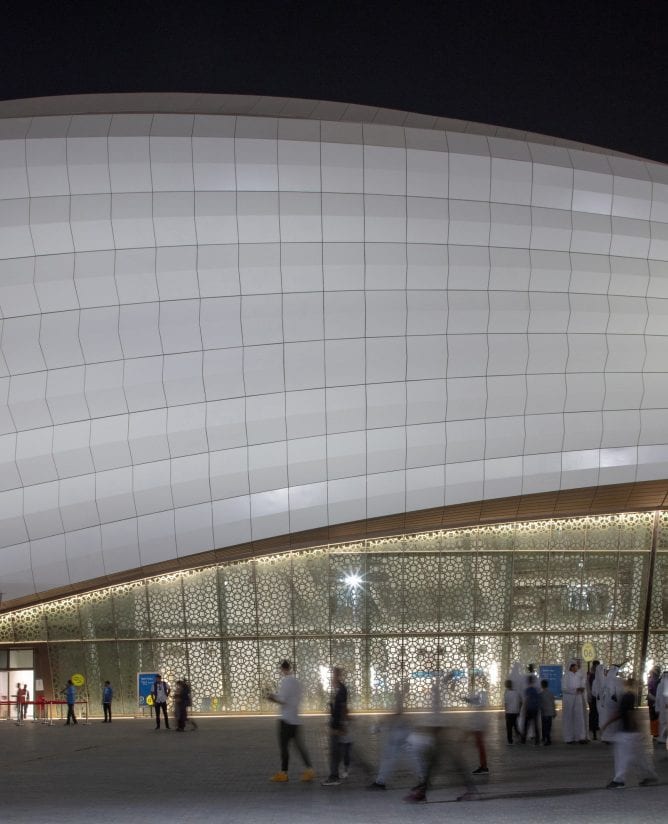

The pleats of the dhow are more visible in this facade

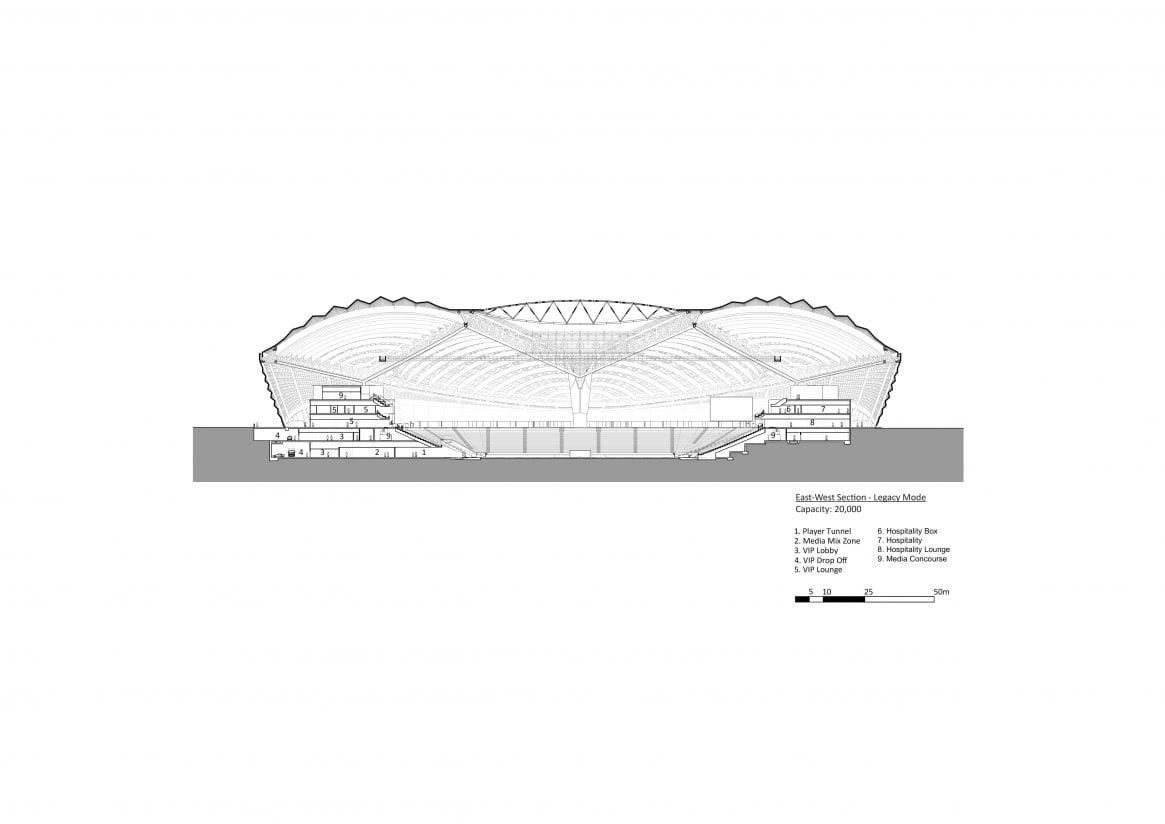

3. The stadium’s opaque roof and wall areas are expressed as pleated cross sections. This feature, which has its origins in Arabic motifs and calligraphy, adds texture to the outer shell and also emphasizes the stadium’s unique geometry. The external cladding materials are deliberately selected from a limited palette of materials and choice of colours; namely white for the roof and wall cladding, and darker colours for the areas below the eaves, including the lower level curtain walling with its ornamental lattice screen print that provide shading.

4. The colour scheme for the external building envelope dovetails with its geometric forms and reinforces the articulation of the outer skin. The roof cladding and opaque surface areas above the eaves are white or off-white in colour with a gloss surface finish that is reminiscent of seashells and emphasizes the pleats which add texture to the building envelope. The embossed eaves and the lattice screen print of the glazed lower-level facades are metallic bronze in colour, adding a sense of richness and depth to the design. The choice of a bronze metallic finish of these worked surfaces pays homage to the traditions and artistry of Islamic craftsmanship.

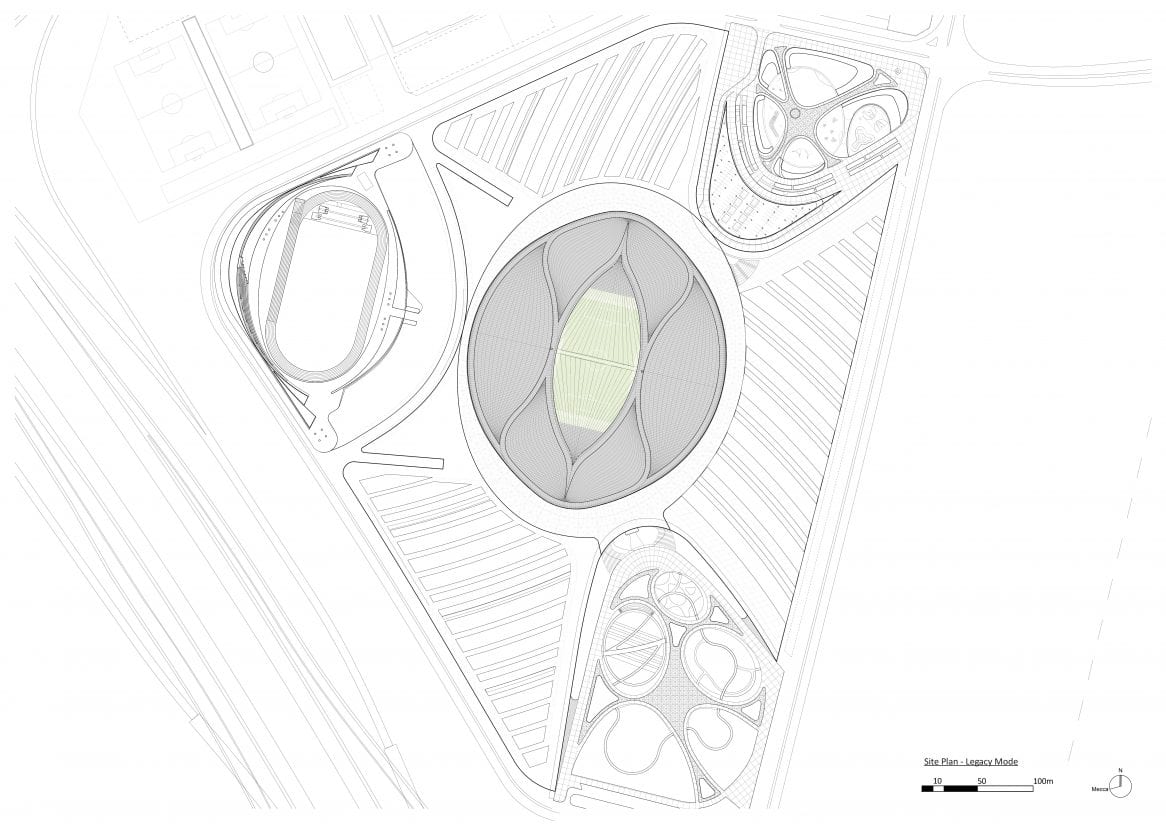

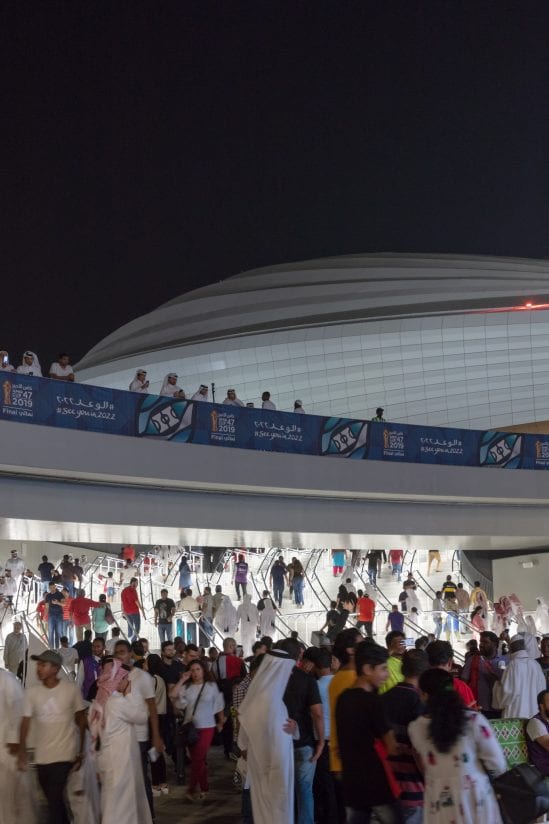

5. The stadium sits on a large landscaped podium that takes visitors from grade to the entry level main entry concourse located at the middle of the seating bowl’s tiers. This podium connects the stadium into the adjacent landscape and reduces its scale. Large parabolic voids within the podium signify different activity zones. On the eastern side, voids allow for the majority of spectators to arrive and depart from the stadium. The northeastern void will include a community market whilst the southeastern void hosts an activity park. To the west, the parabolic void within the podium allows for vehicle access and drop off at grade for the players, officials, and dignitaries.

The stadium was designed in conjunction with its new precinct to sit at the heart of an urban extension of the city, creating community-based activities in and around the stadium on non-event days. Al Janoub stadium is built as a memorable venue and destination during the Qatar 2022 FIFA World Cup and afterward, at the centre of its Al Wakrah community.

Client: Supreme Committee for Delivery and Legacy of the 2022 FIFA World Cup Qatar™

ZHA Project Team

Architect and Lead Designer: Zaha Hadid Architects

Design: Zaha Hadid, Patrik Schumacher

Project Director: Jim Heverin

Project Associate / Project Architect: Johannes Hoffmann

Project Team: Annarita Papeschi, Andreas Urff, Antonio Monserrat, Cynthia Du, Edgar Payan, Ermis Chavaltzi, Fernando Poucell, Ganesh Nimmala, George King, Ho-Ping Hsia, Irene Guerra, Jan Klaska, Junyi Wang, Karim Muallem, Karoly Markos, Ming Cheong, Moa Carlsson, Mohamed Al-Jubori, Nastassia Linau, Paulo Flores, Peter Irmscher, Rafael Portillo, Stephane Vallotton, Thomas Soo, Vincent Konate, Yeena Yun, Wen-Kai Li (Kevin)

Consultants

Lead Consultant: Aecom

Operable Roof Design: Schlaich Bergermann Partner

Pictures Courtesy: Lukes Hayes and Hufton + Crow, Courtesy ZHA
